ProClad ST System

ProClad ST is a heavy-duty, 100% solids, 3-component epoxy mortar system that’s trowel-applied directly over a wet primer at a nominal thickness of 1/4"–1". It is designed to resurface worn concrete and as a protective overlayment on new concrete while offering superior protection in areas requiring high abrasion and impact resistance, as well as wet processing areas. The surface texture can be modified to offer varying degrees of slip and chemical resistance in wet environments. ProClad ST can also incorporate an integral seamless cove base up onto the wall at 4", 6", or 8".

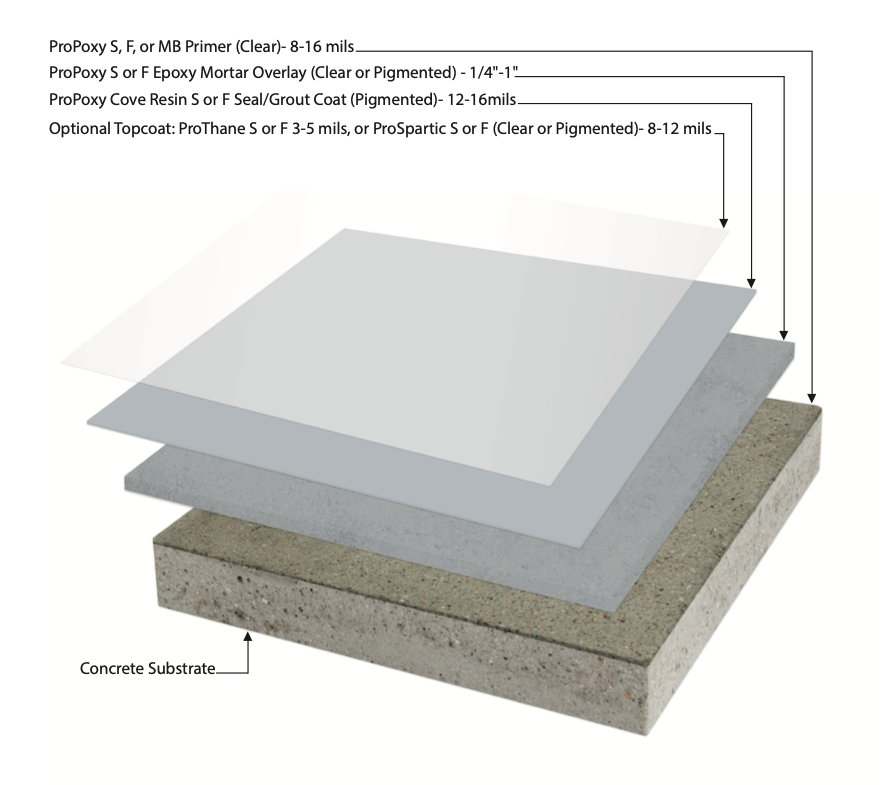

System Design Steps
1

Primer/Sealer

ProPoxy (S/F) or ProPoxy MoistureBLOK (MB)

100% solids epoxy primers to seal the substrate.

Products Used
2

Mortar Overlay

ProPoxy with Natural Quartz

100% solids epoxy resin blended with natural quartz filler. Trowel-applied over wet primer at 1/4"–1" nominal thickness.

Products Used
3

Grout/Seal Coat

ProPoxy Cove Resin

100% solids thixotropic epoxy used as grout or seal coat.

Products Used
4

Optional Finish Coat

ProThane or ProSpartic

Ultra-high solids urethane or polyaspartic topcoat available in gloss or satin finishes.

Products Used
System Benefits
  • 100% Solids Material - Low Odor
  • High Abrasion & Impact Resistance
  • Chemical & Stain Resistant
  • Highly Moisture Tolerant (“MB” Primer)
  • Seamless - Easy to Clean & Maintain
  • Optional MicrobeBLOK Additive
  • Integral Cove Base
  • Varied Non-Slip Textures
