DESCRIPTION
FEATURES & BENEFITS
- 100% Solids, Zero VOC
- Low Odor
- Non-Blushing
- Excellent Resistance to UV exposure
- Excellent Clarity
- High Gloss & Color Stability
- 45+ Minutes Working Time When Combined with Long Working Time (LWT) Hardener
- Low Viscosity
- Resistance to Outgassing Bubblesu Hard-Cure – Screened or Sanded Next Day
- 2 Hardeners – Standard & LWT
- Universal Colorants – 6 gal. Resin Pails for in the field pigment dosing
- MicrobeBLOK Antimicrobial
- Meets USDA & FDA Standards
- OSHA and ADA Compliant
- Complies with VOC Regulations by the EPA for AIM Coatings
COLORS
See “Color Guide”
TYPICAL USES
PACKAGING
- 5 gallon white pail - Resin
- 5 gallon black pail - Hardener
- 1 gallon white pail - Resinu 1 gallon black pail - Hardener
STORAGE
Materials should be stored indoors between 60°F (16°C) and 90°F (32°C).
SHELF LIFE
One (1) year from date of manufacture.
LIMITATIONS
- This product is best suited for application in temperatures between 45°F and 90°F, and relative humidities between between 30%-90%.
- Material provided in pails should be thoroughly mixed to redistribute any settlement that may have occurred during shipping or storage.
- Do not mix more material than can be applied within the specified pot life – see “Physical Characteristics” chart.
OPTIONAL
ProThickener (aerosil thickener)ProColor Universal Colorants
(on-site pigmenting) ProMetallic (light reactive pigments)MicrobeBLOK (anti-microbial)
PRODUCTS GUIDE

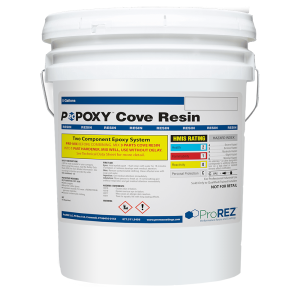

1. ProPoxy UVR Resin is a U-V resistant 3:1 epoxy to be used for decorative, high-build, self-leveling intermediate and grout/top coats. 2. ProPoxy UVR Cove Resin is a thickened
and versatile 3:1 epoxy to be used as a vertical binder when mixed with colored quartz aggregates. Can also be used as a grout coat over decorative epoxy troweled mortars.3. ProPoxy S-Hardener is a versatile epoxy

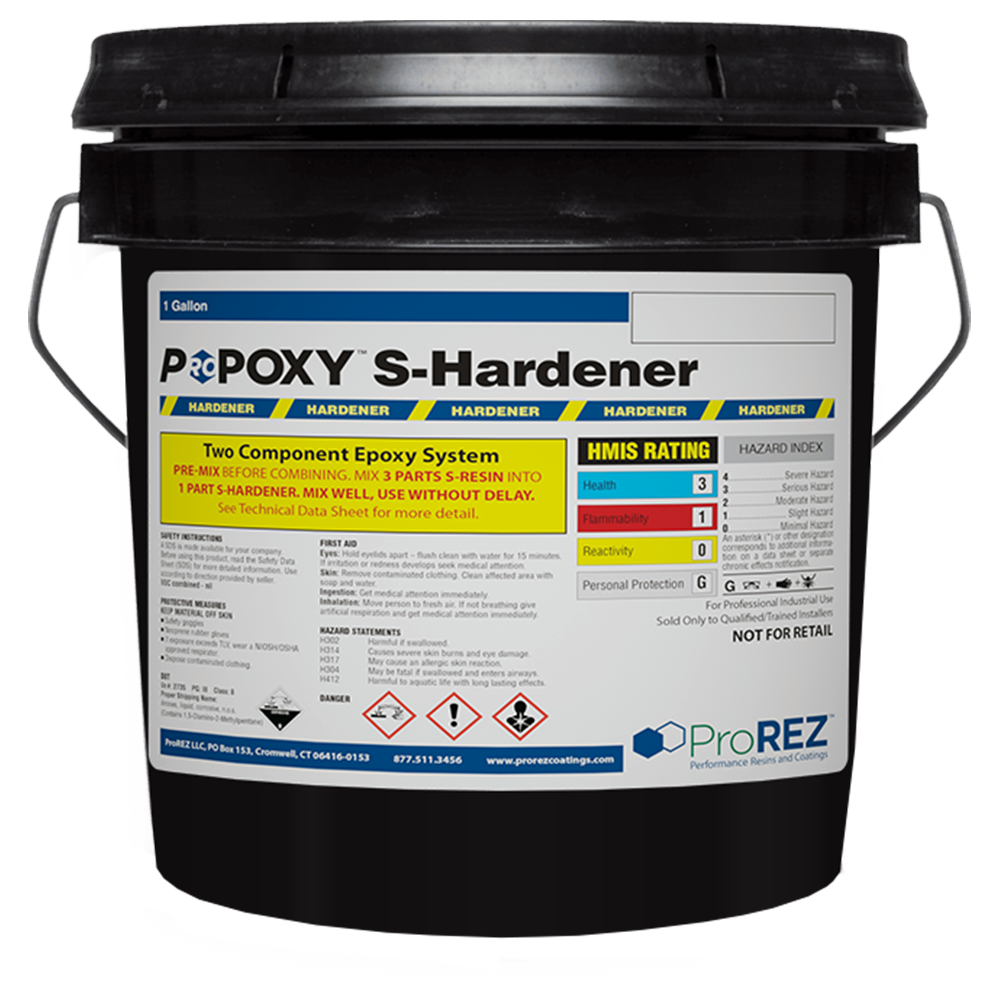

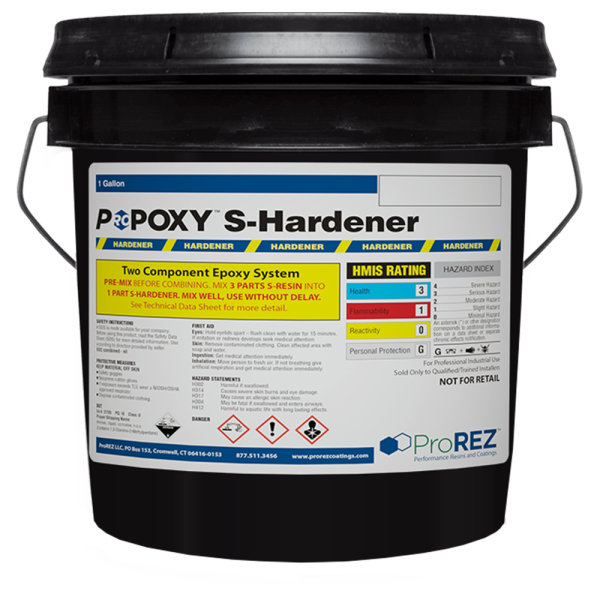

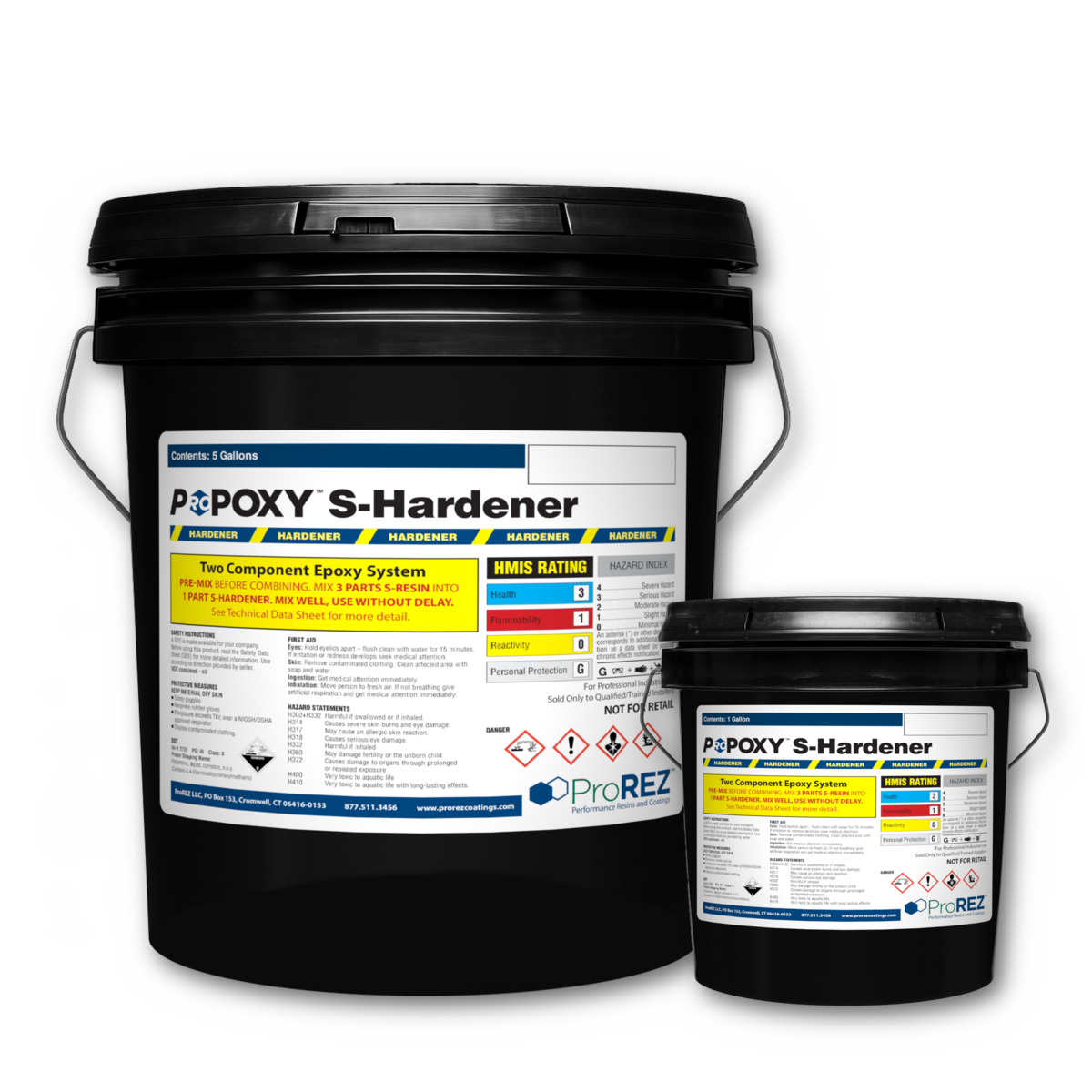

hardener that balances longer working time with an 8 hour cure (70°F) when combined with ProPoxy Resins.
5. ProPoxy LWT-Hardener is a long working time hardener when combined with ProPoxy UVR resin. It is designed specifically for ProLumina systems requiring extended “
open” time.
COVERAGE RATE
A gallon of ProPoxy UVR will cover in the following manner, with a *standard spread
PRELIMINARY FLOOR INSPECTIONS
JOINT GUIDELINES
Depending on preference, joints may or may not be filled. If the joints are filled, nonmoving joints, i.e. contraction or control joints can be treated by using ProPoxy with ProThickener, or by using ProMender HF, a hard-and-fast urea filler for Fast-Track applications.Note: Coating applied over filled joints may
crack if there is concrete movement.
ProREZ Coatings, LLC
P.O. Box 153, Cromwell, CT 06416-0153 877.511.3456 www.prorezcoatings.com
MIXING INSTRUCTIONS
APPLICATION EQUIPMENT:
- Personal Protective Equipment (PPE) & clothing per SDS (Safety Data Sheet)
- Jiffy® Mixer Blade (ES Model)
- Clean Mixing Container
- Low Speed/High Torque Power Drill
- Shed-Resistant Roller Cover - 3/8" Nap
- Application SqueegeeMix ratio for ProPoxy UVR is 3 parts Resin to 1 part Hardener by volume. 8-16 oz. of ProColor Universal Colorant is recommended
CARE
Proper maintenance will increase the service life and help maintain the appearance of your new ProREZ floor coating system. This product is considered to be a low maintenance coating system, however, certain textures and service environments require specific procedures. SEE “CLEANING GUIDELINES” for more information.
CAUTION
Avoid scratching or gouging the surface. All floor coatings will scratch if heavy or sharp objects are dragged across the surface.Do not drop heavy or pointed items on the
floor as this may cause chipping or concrete pop-outs in the case of a weak substrate cap.Rubber tires can permanently stain the floor
coating from plasticizer migration. In warehouse & industrial settings, the use of non-marking tires is highly recommended to prevent discoloration. Rubber burns from quick stops and starts can heat the coating to its softening temperature, causing permanent marking.
REPAIRS
Repair gouges or scratches or chip outs as soon as possible to prevent moisture or chemical contamination.
| PHYSICAL CHARACTERISTICS | |
|---|---|
| Percentage solids by weight | 100% |
| Mix Ratio (by volume) | 3 parts Resin & 1 part Hardener |
| Viscosity at 70°F | 500 cPs |
| Pot Life (100 gms @ 70°F) | 30 mins (LWT-Hardener), 20 mins (S-Hardener) |
| Cure Time (@70ºF) | ProPoxy LWT-Hardener: 18 hrs foot traffic ProPoxy S-Hardener: 8-10 hrs foot traffic |
| Working Time at 70°F | 45 mins (LWT-Hardener), 25 mins (S-Hardener) |
| Recoat Window (@70°F) | Maximum of 36 hrs |
| Coverage Rate | 10 mils, 160 sq ft/US gallon. Can be applied to 6 mils, 267 sq ft/US gallon |
| Volatile Organic Compound | (VOC) nil |
| PHYSICAL PROPERTY | TEST METHOD | RESULT |
|---|---|---|
| Hardness (Shore D) | ASTM D-2240 | 70-80D |
| Compressive Strength | ASTM D-695 | 13,100 psi |
| Tensile Strength | ASTM D-638 | 5,780 psi |
| Tensile Elongation | ASTM D-638 | 7.50% |
| Adhesion to Concrete | ASTM D-7234 | >400 psi, substrate fails |
| Impact Resistance | ASTM D-2794 | >160 in/lb |
| Water Absorption | ASTM D-570 | <0.1% |
| Flame Spread/NFPA 101 (3 mils over cement board) | ASTM E-684 | Class 1 |
| Abrasion Resistance CS17 Wheel 1000 GM Load 1000 Cycles | ASTM D-4060 | 30 mg loss |
| Coefficient of Friction (James Friction Tester) Wet Dry | ASTM D-2047 | 0.7 (smooth) 0.8 (smooth) |
| Heat Resistance Limitation Thermal Cycling (5 min interval) (10 min interval) Continuous Heat | Hot Oil (200°F) to Ice Water (25°F) Hot Oil (200°F) to Ice Water (25°F) 1 hr 160°F Hot Oil submersion | 20 cycles – no effect 20 cycles – no effect No effects |
OTHER TESTS: MORTAR MIX
Compressive Strength ASTM C-579 15,000 psi
Tensile Strength ASTM C-307 2,400 psi
Flexural Strength ASTM C-580 4,000 psi
Flexural Modulus of Elasticity ASTM C-580 1.0 × 10 6
Thermal Coefficient of Linear Expansion ASTM C-531 1.1 × 10 -5 in./in.°C
Water Absorption ASTM C-413 <0.1%
Note on Technical Data: Test data shown for physical properties are typical values obtained under laboratory conditions. Some variations could result under dynamic conditions in the field such as temperature, humidity and type or condition of substrate. Complies with LEED IEQ Credit 4.1. Once cured, this product is inert (chemically inactive) so it is safe to discard and is safe to use in areas subject to inspection for food safety.
DISPOSAL
Dispose in accordance with federal, state and local regulations.
TECHNICAL SUPPORT
For any application questions, please call ProREZ technical support at 877.511.3456.
SDS
PLEASE SEE SAFETY DATA SHEET (SDS) FOR SAFETY AND PRECAUTIONS. USE PRODUCT AS DIRECTED. KEEP OUT OF THE REACH OF CHILDREN.
